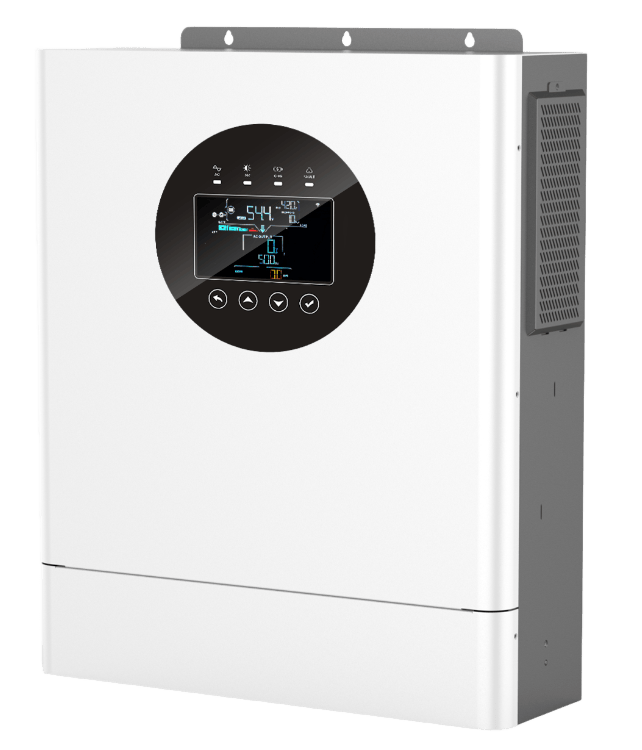

SYNOE Q-I12000 Inverter - 12KW

AC Input: 170V–280V ±3% @ UPS Mode(90V–280V) ±3% @ APL Mode, 50/60Hz

AC Rated Output: 208/220/230/240V, 50/60Hz, 12KW

AC Peak Output Power: 24KW

PV Input:
Using one MPPT: MAX 27A, 9KW
Using two MPPT: MAX 22.5A+22.5A, 15KW

Communication: RS485 / RS232/ USB

Power Factor: 1

Compatible Battery Types: Lithium Battery / Lead-acid Battery

Operating Temperature: -10°C to +50°C

Storage Temperature: -15°C to +60°C

Protection Rating: IP21

Ingress Maximum Altitude: ≤4000m

Operating Mode: Off-grid / On-grid

Package Size (mm) 551*491*191
